Coated Solar Module
Coated Photovoltaic Module (Single Crystal)
| Product Name | SR66DH310C YKMO | SR66DH315C YKMO | SR72DH340C YKMO | SR72DH360C CYMO |
|---|---|---|---|---|
| Cell Type | 66Cell | 66Cell | 72Cell | 72Cell |
| Rated Sway | 310(W) | 310(W) | 340(W) | 360(W) |
| Open Voltage | 43.32(V) | 43.41(V) | 46.16(V) | 46.30(V) |
| Short Circuit Current |
9.36(A) | 9.43(A) | 9.45(A) | 9.82(A) |
| Maximum Output Voltage |
34.82(V) | 35.13(V) | 37.60(V) | 39.25(V) |
| Maximum Output Current |
8.91(A) | 8.97(A) | 9.05(A) | 9.26(A) |
| Efficiency | 18.08(%) | 18.38(%) | 18.20(%) | 19.30(%) |
| Size | 975x1760x48(mm) | 975x1760x48(mm) | 975x1918x48(mm) | 975x1918x48(mm) |
| Weight | 19.5(Kg) | 19.5(Kg) | 21.2(Kg) | 21.2(Kg) |
PPS Good Product - PV System

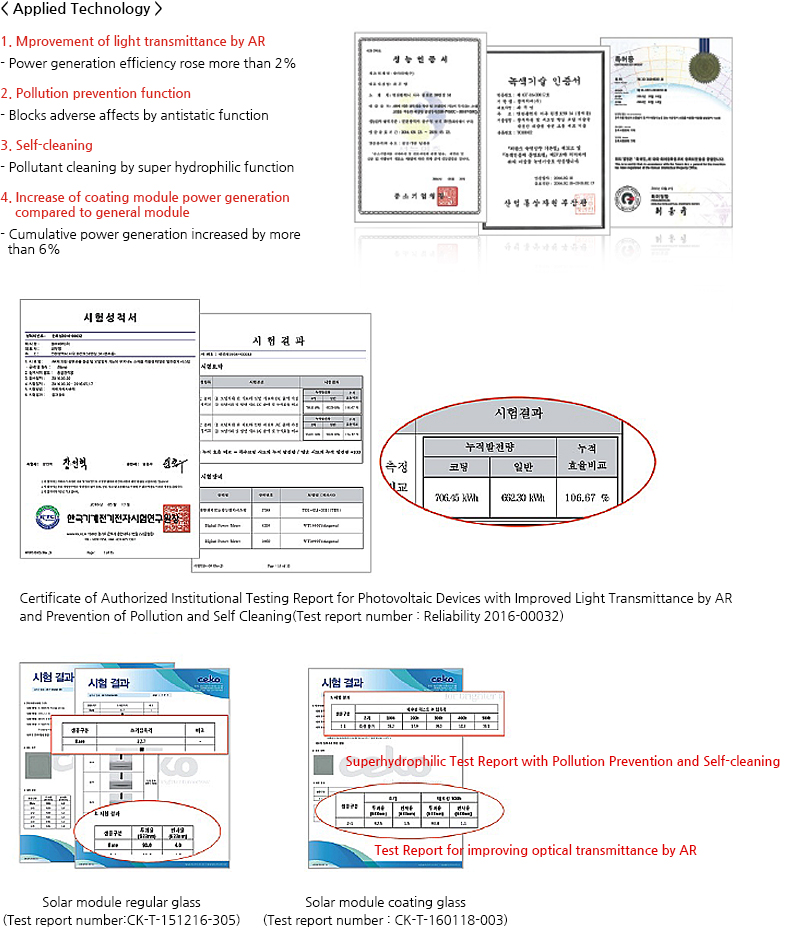

Photovoltaic power generation system using inorganic nanomaterial coating with improved light transmittance by AR and prevention of pollution
